Viewpro Q20T UAV Zoom Camera: 20x Optics and Video Output Choices

Specify the output and recording as two separate requirements

For a roof survey, a live image may be used to frame each section while recorded footage supports a later review of the surface. Those two jobs can have different format requirements. Ask for the camera version, live output format and local recording format together. The manufacturer's page contains both older 1080p descriptions and newer IP/4K options; this listing does not promise 4K across every output or delivered configuration.

Decide how close a view you actually need

A larger zoom number is helpful only when the feature remains useful on screen. For a tower, roof or other civil asset, provide the smallest feature that must be distinguished and the expected working distance. Also describe whether you need an overall condition record or a close view of one area. That makes it easier to compare Q20T with a lighter zoom payload or a different sensor combination.

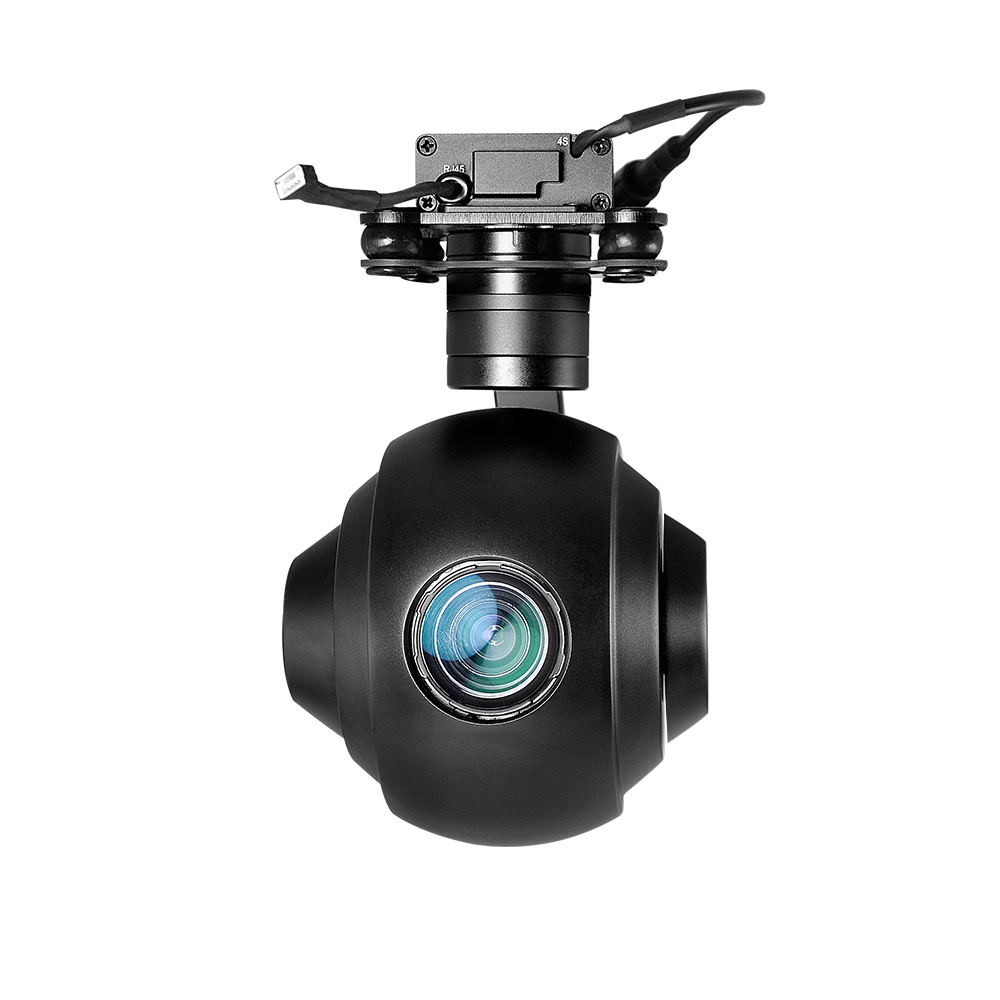

Plan a mounting position with a clear field of view and enough clearance for the moving camera. At tighter framing, a careful balance of aircraft vibration, mounting and operator inputs becomes particularly important. The gimbal specification is one component of that system, not a substitute for assessing the installed aircraft.

Q20T questions answered

Does the name mean every live output is 4K? No. Live output and local recording depend on the quoted version and configuration. State both required formats before ordering.

Can Q20T replace a thermal payload? This model is a visible-light camera. If the inspection depends on observing heat patterns, select an appropriate thermal or dual-sensor camera.

Must the operator use a computer? The required control route depends on your aircraft system. Choose a supported remote-control or serial connection and verify which camera functions the intended controller exposes.
