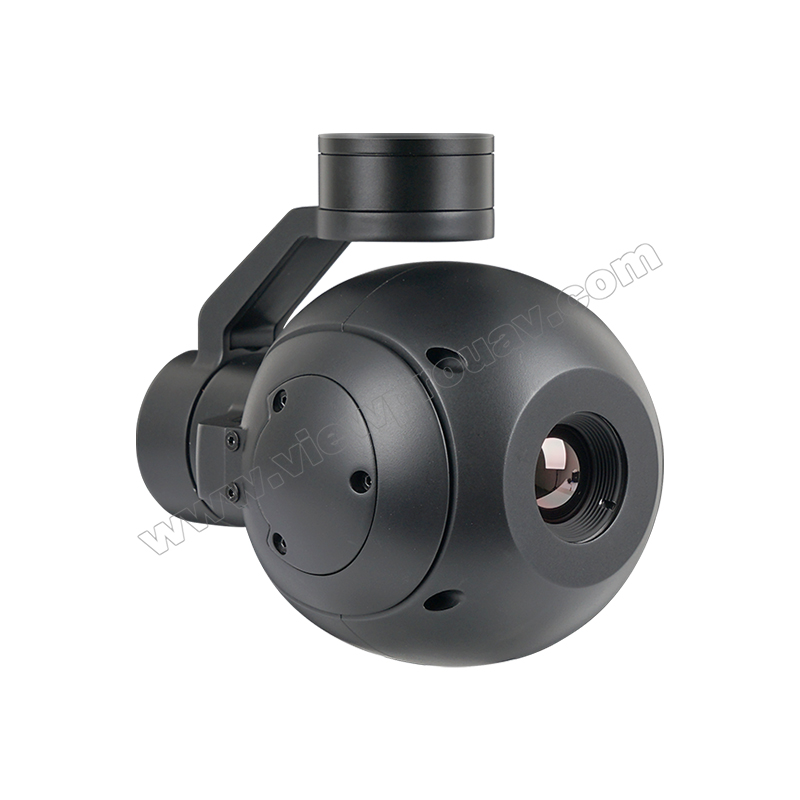

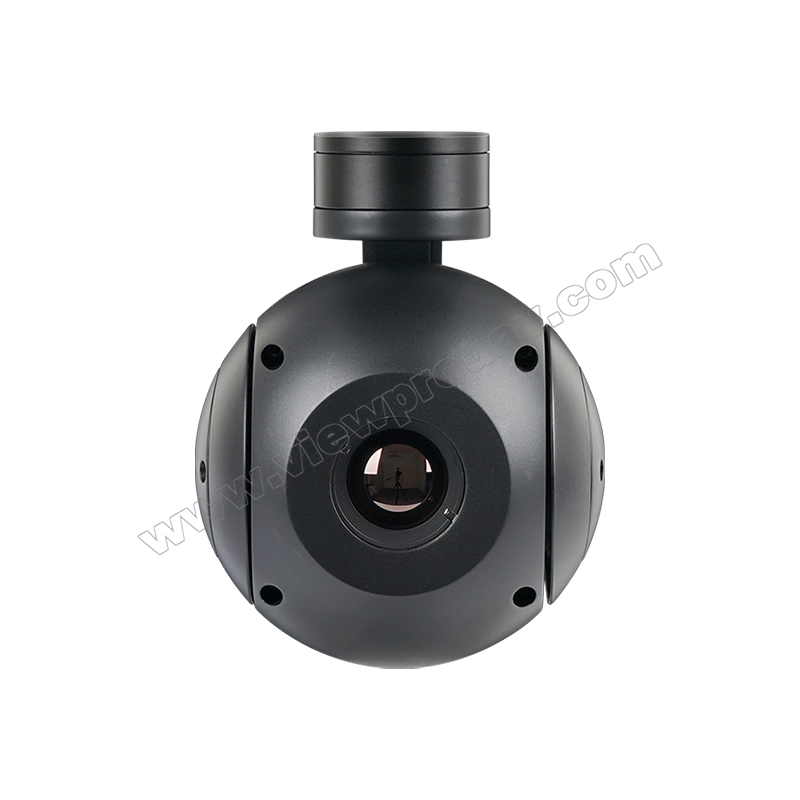

Viewpro AT19 Thermal Drone Gimbal Camera with a 19mm Lens

Start with scene coverage, then choose the video connection

The lens and detector determine the thermal scene available to the operator. Viewpro lists a 12µm pixel pitch and a 22.9° horizontal field of view for this 19mm camera. These are useful selection points when comparing how much of a site appears in one frame. The listed digital zoom enlarges the displayed scene; it does not turn the fixed lens into an optical zoom lens.

The manufacturer documents HDMI and IP video choices. Select the output around the aircraft's existing link and the ground station's video input. An HDMI transmitter and an Ethernet transmitter present different integration requirements, even if both ultimately display a thermal picture on a handheld controller.

Tracking helps with framing; the operator still interprets the image

AT19 includes image detection and tracking functions described by Viewpro. In a civil search exercise, these can assist the camera operator in keeping a selected object within the frame while the pilot manages the aircraft. Thermal contrast changes with the scene, and objects can become obscured. Choose a display arrangement that allows the operator to inspect the actual image rather than relying only on a highlighted box.

For an asset survey, clarify whether you need thermal video or numerical temperature measurements. They are different deliverables. This listing describes the AT19's thermal imaging capability; a project that needs calibrated readings should have that measurement requirement checked against the exact supplied camera configuration.
