| Price | On request |
|---|---|
| Model | Recon Eye-K3 |
| Visible camera | 1/2.7-inch visible sensor, 2592 × 1944 pixels; fixed 3 mm F2.4 lens |
| Stabilization | Three-axis |
| Storage | TF JPEG 1920x1080; MP4 1080p30 |
| Power input | 12–18 V |
| Weight | 115 g |
| Lens configuration | 3 mm F2.4; fixed optics |
| Control interfaces | TTL serial / S.Bus / network TCP |
Recon Eye-K3 is a compact, visible-light payload for small multirotors. The 115 g camera and three-axis gimbal combine a fixed wide-angle lens with local HD recording. Choose K3 when your job needs an overview of a site or structure and the aircraft has a limited payload budget. It is a different selection from a heavy optical-zoom camera or a dual-sensor thermal payload.
Use a wide scene to document work areas, roofs and access routes. A repeatable viewing position helps the team compare images from separate visits.
Start with the 115 g camera mass, then include the chosen mount and wiring in the aircraft budget. Check the payload bay and moving-gimbal clearance before selecting a bracket.
The fixed 3 mm lens gives broad scene coverage. It suits an operator who needs context rather than a narrow close-up from a long optical-zoom lens.

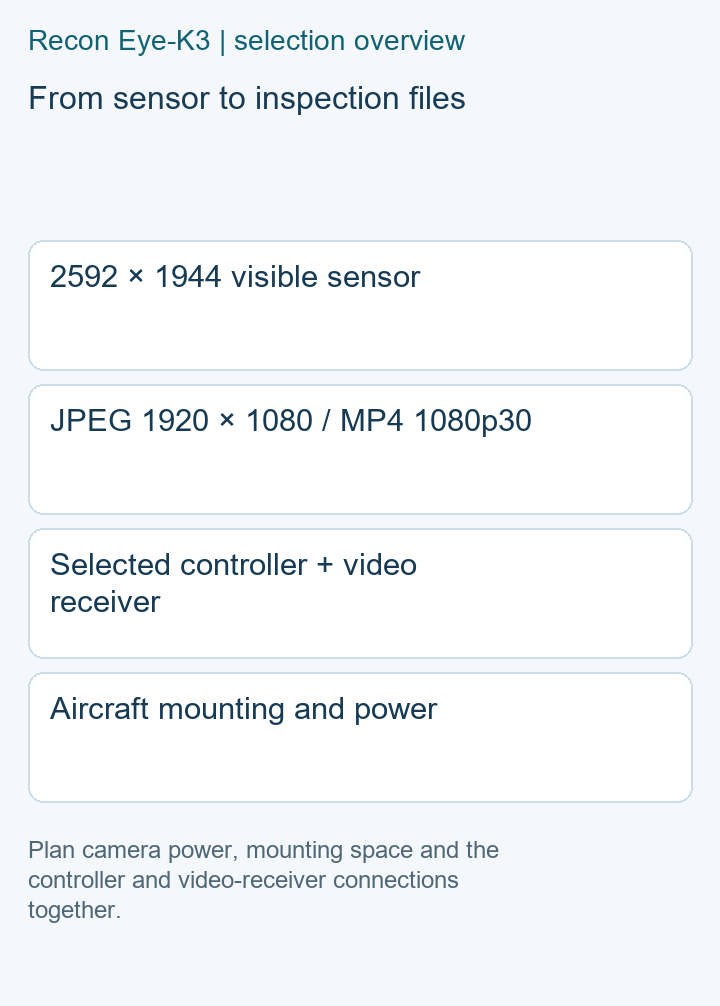

The visible sensor is listed at 2592 × 1944 pixels. On the TF card, the specified photograph format is JPEG at 1920 × 1080, and video is MP4 at 1080p, 30 fps. Plan your inspection report around the saved files: sensor dimensions do not turn the recorded video into a higher-resolution deliverable.
| Camera role | Single visible-light camera; fixed 3 mm lens |
|---|---|
| Sensor | 1/2.7-inch; 2592 × 1944 pixels |
| Gimbal and mass | Three-axis; 115 g |
| Power input | 12–18 V |
| Control modes | TTL serial, S.Bus and network TCP |
| Recording | TF card: JPEG 1920 × 1080; MP4 1080p at 30 fps |
| Video encoding | H.264 and H.265 |
For an existing UAV, choose the control connection alongside the video receiver and ground display. A matching connector alone is not the whole installation: include the controller model, receiver model and mounting arrangement in the quotation request so the kit can be assembled around your aircraft.
Send the aircraft model, spare payload capacity, available power, mounting-space drawing and required control connection. Add a short description of what the operator must see and what files the inspection team expects. If recognition or tracking is part of the project, include the controller and software workflow in the request.
No. This model is a visible-light camera. Choose a separate EO/IR payload for thermal inspection.
No. The specified TF-card video is 1080p at 30 fps. The larger figure describes the sensor.
No. K3 uses a fixed 3 mm lens. Choose an optical-zoom camera for a variable narrow view of distant details.
K3 is a movable imaging payload with its own mounting and control needs. Choose it for the inspection-camera role and plan the aircraft's pilot-view system separately.
Technical reference: YANGDA Recon Eye-K3 specifications.
| Weight | 115 g |
|---|---|
| Stabilization | Three-axis |
| Visible Camera | 1/2.7-inch visible sensor, 2592 × 1944 pixels; fixed 3 mm F2.4 lens |
| Voltage | 12–18 V |
| Control | TTL serial / S.Bus / network TCP |
| Still Photography | TF-card JPEG, 1920 × 1080 |
| Video Recording | TF-card MP4, 1080p at 30 fps |
| Encoding | H.264 and H.265 |
