| Price | On request |
|---|---|
| Model | Sky Eye-30HZ-S |
| Visible camera | Single visible EO camera; 1/2.8-inch 2.13 MP CMOS; Full HD 1920 × 1080 |
| Stabilization | Three-axis |
| Video output | HDMI and Ethernet |
| Storage | MP4, 1080p at 30 fps |
| Weight | 784 g camera and gimbal |
| Lens configuration | 30× optical; focal length 4.3–129 mm |
| Control interfaces | PWM / S.Bus / serial command / Ethernet software control |

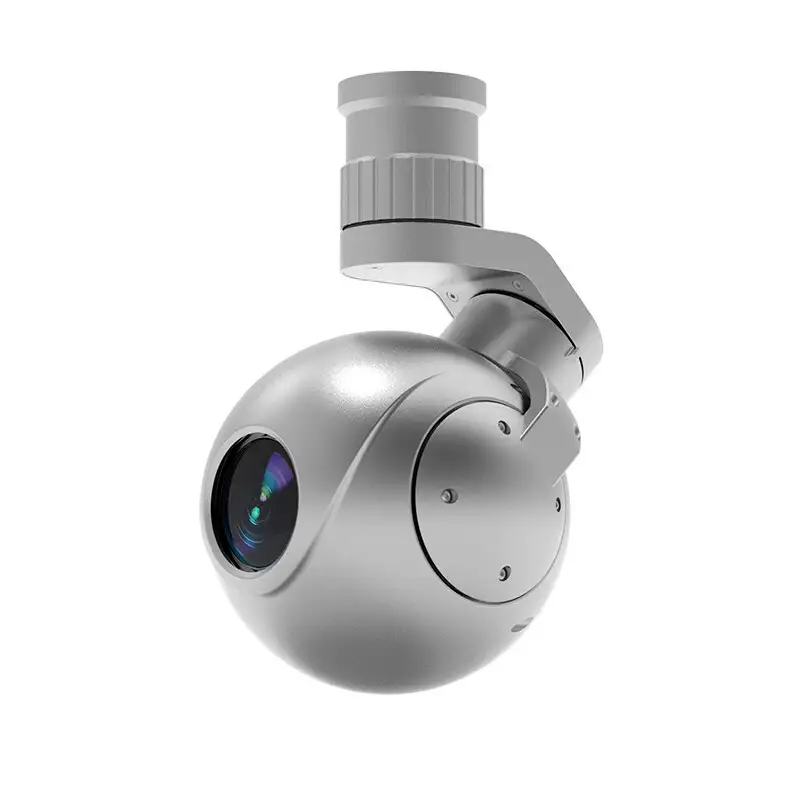

Sky Eye-30HZ-S is a three-axis, visible-light UAV camera with 30× optical zoom and Full HD imaging. It suits daylight inspection when the aircraft needs a broad view first, then a closer view of a selected building feature, bridge component or roof detail. Its 784 g camera-and-gimbal mass places it in a different aircraft class from a miniature fixed-lens payload.

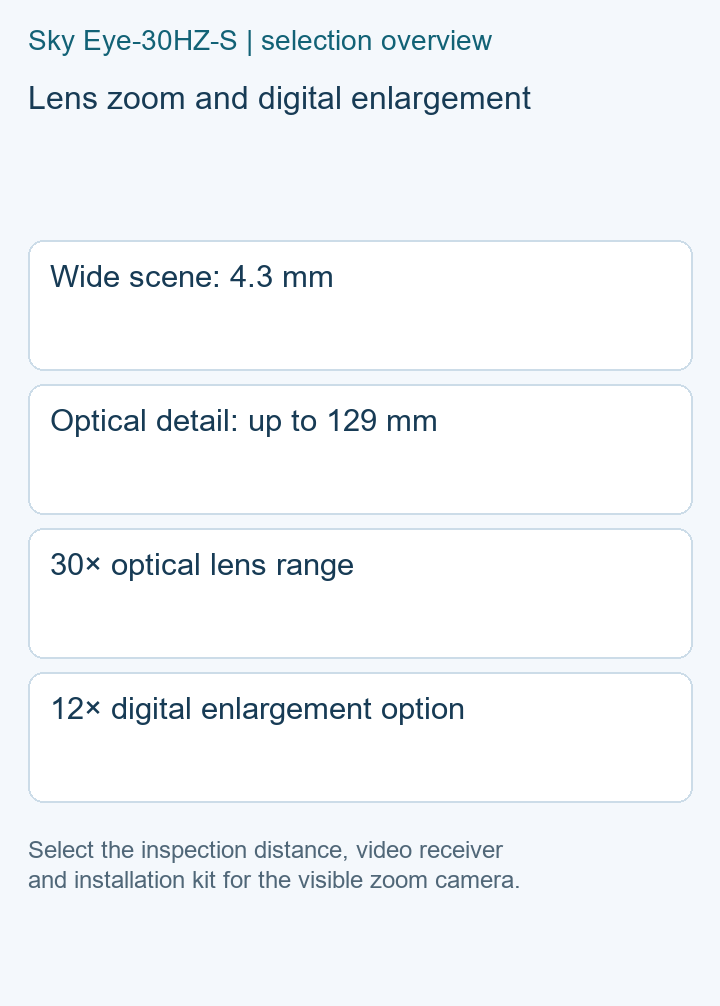

The lens changes focal length from 4.3 to 129 mm. Start wide to locate the area being inspected, then narrow the view for a closer look. This is useful when the aircraft's safe working position keeps it away from the structure.
Digital zoom enlarges image information after capture. The published 360× combined figure comes from optical and digital zoom together; it is not a 360× optical lens. Plan detail requirements around the 30× optical range and the 1920 × 1080 image.
Allow for the 784 g camera and gimbal, plus the mount, power conversion and connection cables in your aircraft payload calculation. Check landing clearance and the full movement envelope. On a multirotor or VTOL project, the installation decision should include centre of gravity and the viewing direction required during the inspection.
| Imaging role | Single visible-light camera; Full HD 1920 × 1080 |
|---|---|
| Optical system | 30× optical zoom; 4.3–129 mm focal length |
| Digital enlargement | 12×; up to 360× combined with optical zoom |
| Stabilized axes | Three-axis gimbal |
| Camera and gimbal mass | 784 g |
| Video connections | HDMI and Ethernet |
| Recorded video | MP4, 1080p at 30 fps |
Choose the ground-viewing connection separately from the saved-video requirement. HDMI and Ethernet serve different receiver arrangements; tell FD which video link and display are already on the aircraft. Also include the camera-control system, so lens control and gimbal movement are part of the same integration plan.
No. Sky Eye-30HZ-S is a visible-light EO camera. Use an EO/IR model for a heat view.
No. Optical zoom is 30×. The combined figure includes up to 12× digital enlargement.
Choose by the aircraft's payload allowance, mounting space and power system. Include the 784 g camera-and-gimbal mass before adding installation hardware.
This is a daylight visible-imaging selection. For inspections based on heat patterns or low-visibility thermal viewing, request a dual-sensor payload.
Technical reference: YANGDA Sky Eye-30HZ-S specifications.
| Visible Camera | Single visible EO camera; 1/2.8-inch 2.13 MP CMOS; Full HD 1920 × 1080 |
|---|---|
| Optical Zoom | 30× optical; focal length 4.3–129 mm |
| Digital Zoom | 12× digital; 360× combined with optical |
| Stabilization | Three-axis |
| Weight | 784 g camera and gimbal |
| Video Output | HDMI and Ethernet |
| Video Recording | MP4, 1080p at 30 fps |
| Control | PWM / S.Bus / serial command / Ethernet software control |
Choose YANGDA Sky Eye-30HZ-S optical zoom gimbal camera for daylight UAV inspection: 30x optics, Full HD imaging and HDMI or Ethernet video connections....

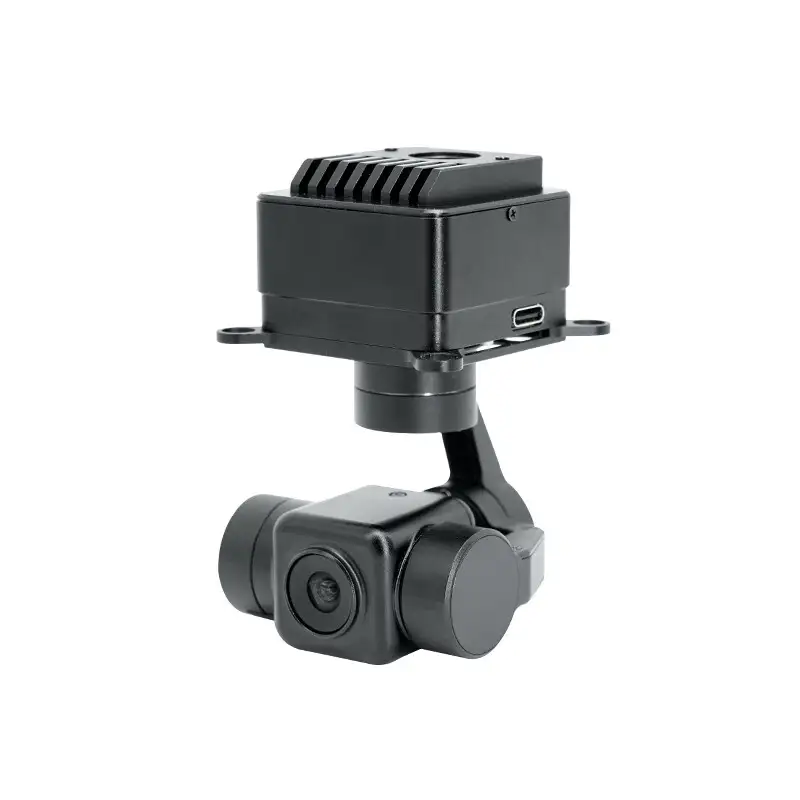

Explore YANGDA Recon Eye-K3 lightweight drone gimbal camera: 115 g, fixed wide-angle optics, three-axis control and 1080p recording for small UAV projects....
