DHU586G609P Compact Dual Sensor Gimbal Camera with Fixed-Lens UAV Imaging

A compact two-channel camera with fixed-lens coverage

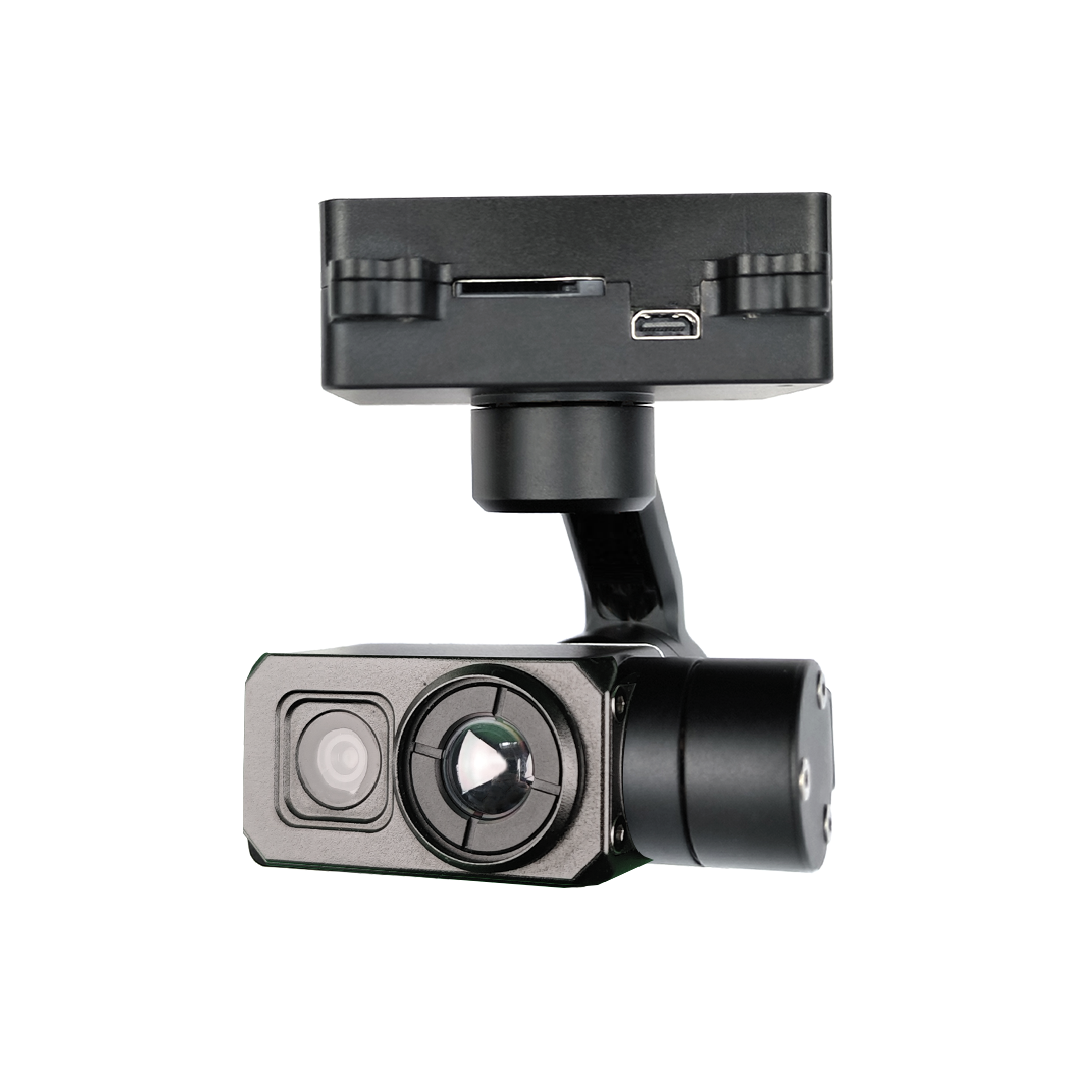

DHU586G609P brings a visible view and a thermal view into a three-axis UAV gimbal. Its fixed visible lens makes it a coverage-oriented choice: the camera position and aircraft viewpoint determine the framing, while digital enlargement changes the displayed crop. It suits civil imaging projects that need both channels without selecting a larger optical-zoom payload.

Three distinctions that matter during selection

Separate the sensor, stream and saved image

For a building survey, the useful question is whether the received picture contains the detail required in the report. A high sensor count does not answer that question on its own. Exposure, focus, output mode and the final file all affect what the operator can inspect. Ask for an original photograph and an unedited stream sample from the offered configuration, then view both at native size.

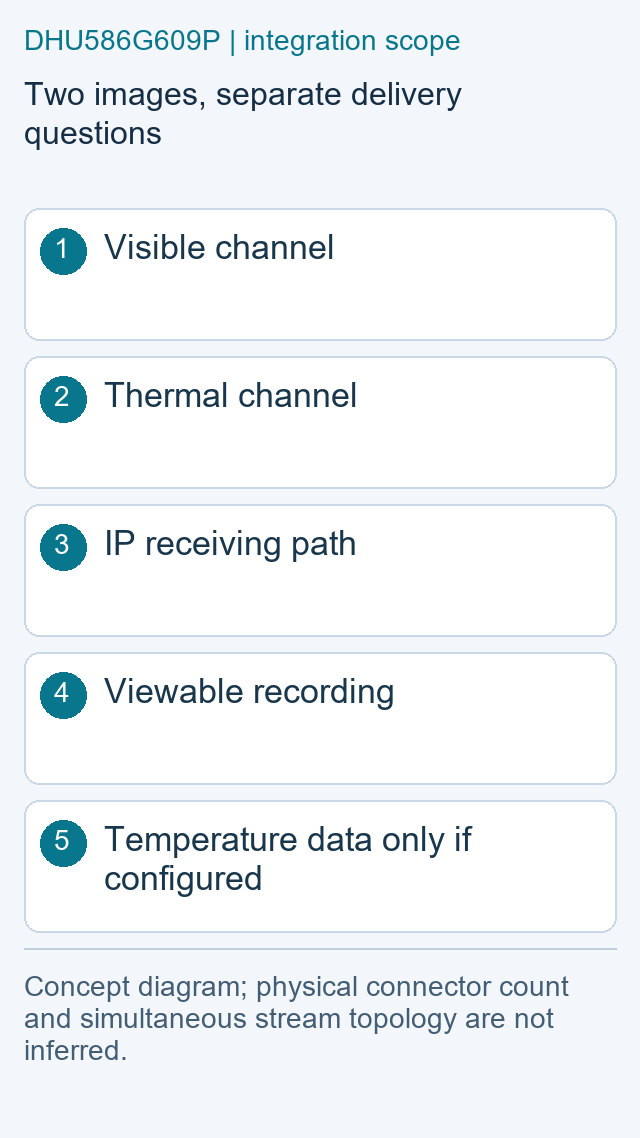

Build a two-channel viewing and recording path

Start with a simple connection plan: camera video, network transport, receiving software and stored output. Label where the visible channel and thermal channel appear. The product title's “dual output” wording does not establish two independent physical video connectors or simultaneous stream availability on every revision.

Next, identify which controls the operator needs while viewing: pointing, camera settings and recording. Receiving an IP picture does not demonstrate control integration. Use the documented command interface for the supplied revision; do not assume a universal UAV camera protocol. If manufacturer software is part of the solution, include its version and use rights in the delivery list.

Fit the camera to the civil UAV installation

The compact camera is a candidate for roof checks, equipment observation and other civil work where a thermal pattern benefits from visible context. These are application examples, not completed field tests. Keep the mounting location clear throughout gimbal movement, including space for the cable loop and selected vibration isolation.

A fixed lens also changes flight planning. If the initial view does not contain enough detail, digital enlargement cannot replace additional optical information. Reconsider the required viewpoint, lawful access and safe working distance before choosing this camera instead of an optical-zoom model. Three-axis construction alone does not establish sharper footage on a particular aircraft.

Product questions

Does 9× mean an optical zoom lens?

No. This fixed-lens model lists digital enlargement. Judge the detail in the original image before treating a larger display crop as additional information.

Are 48 MP photographs included?

The sensor is described as 48 MP. The saved-photo dimensions are not established by that description; the delivered file mode must be stated separately.

Can thermal images provide numeric temperatures?

Measurement is an optional configuration. The order should identify whether numeric values, full-pixel files or only viewable thermal images are supplied.
