GEPRC TAKER H743 BT 8Bit 80A STACK

Price: 129.99$
Model: TAKER H743 stack integration

Get Quote


Identity not releasedH743 stack build sheet

Check the TAKER H743 BT stack as a paired electrical assembly

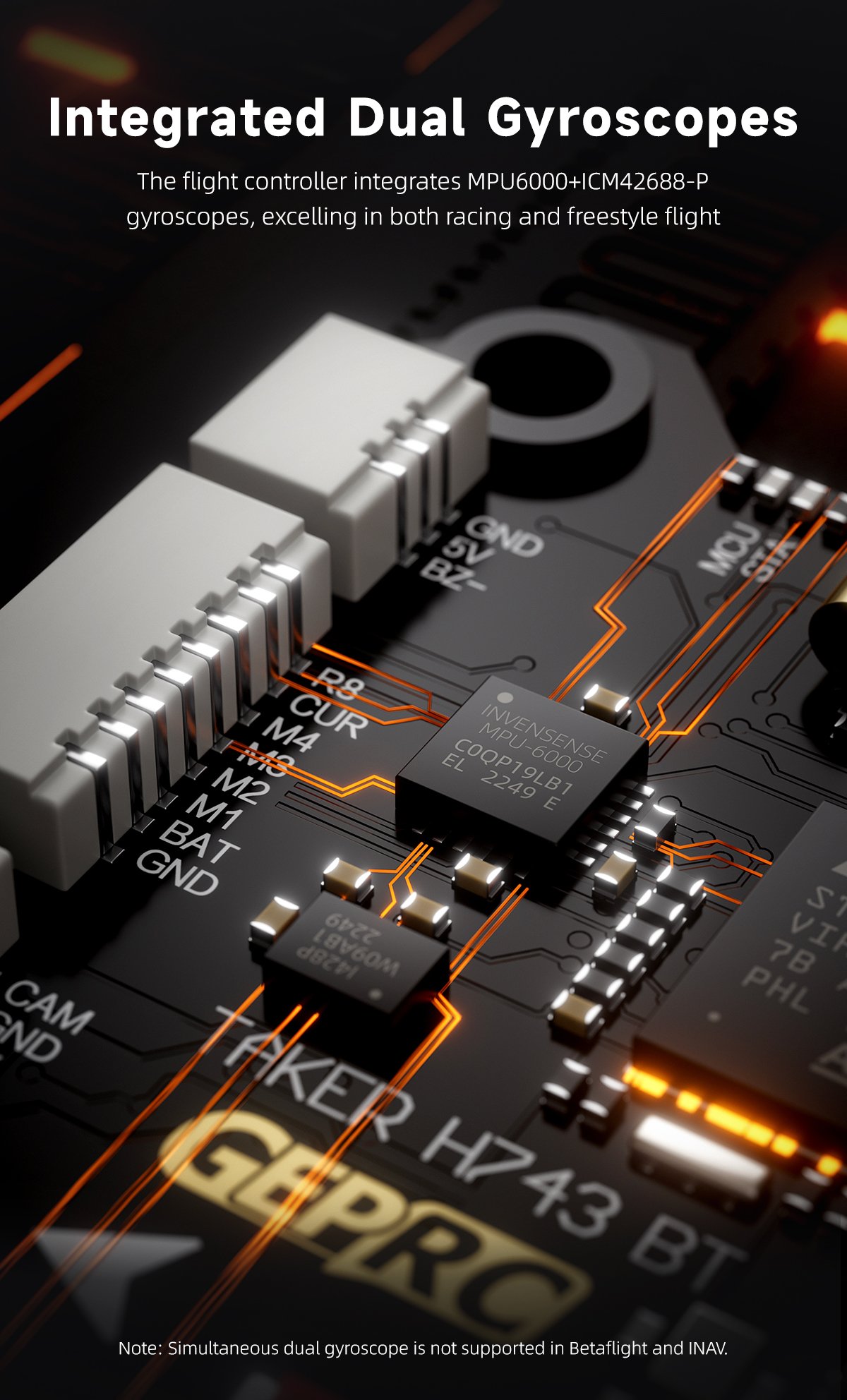

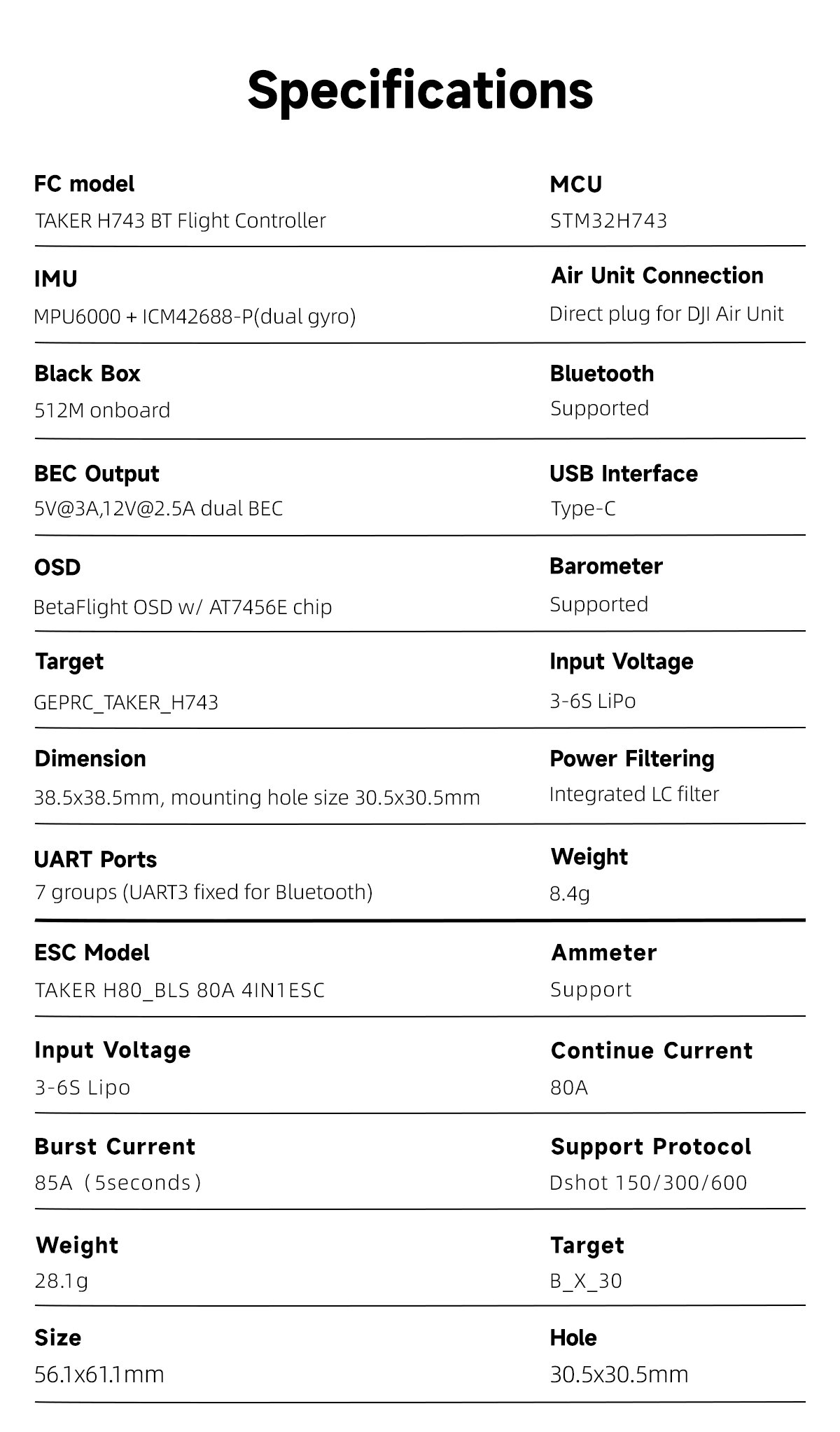

The TAKER listing combines a controller, four-in-one ESC, harnesses and revision-dependent software features. Keep the delivered stack revision on an identity hold until board labels, Bluetooth status, storage unit and accessory bundle agree. The source pairs a TAKER H743 BT controller with a TAKER H80_BLS 80A four-in-one ESC. It records STM32H743 processing, MPU6000 and ICM42688-P gyros, a 512M blackbox entry, barometer, seven UARTs, 5V at 3A and 12V at 2.5A BEC outputs, 3–6S input and eight motor outputs. A GEPRC current-batch notice dated 2026-02-25 says Bluetooth is temporarily unsupported, while the storage unit behind 512M remains unresolved. The ESC is separately listed at 80A continuous and 85A for five seconds. Delivery and compatibility depend on both board revisions, firmware targets, harness pinout, cooling and the supplied accessory inventory.

Reasons for the identity pause

  • Open 1Revision gate: current-batch Bluetooth is listed as temporarily unsupported; confirm delivered hardware and the 512M unit.
  • Open 2Power gate: verify accessory loads against separate 5V and 12V BEC limits.
  • Open 3Topology gate: eight controller outputs do not prove an eight-channel ESC package.

TAKER stack matching table

Build decisionSource detailVerification gate
ControllerH743, dual gyro and seven UARTs; current-batch Bluetooth unsupported noticeBoard revision, target, port map and delivered Bluetooth status

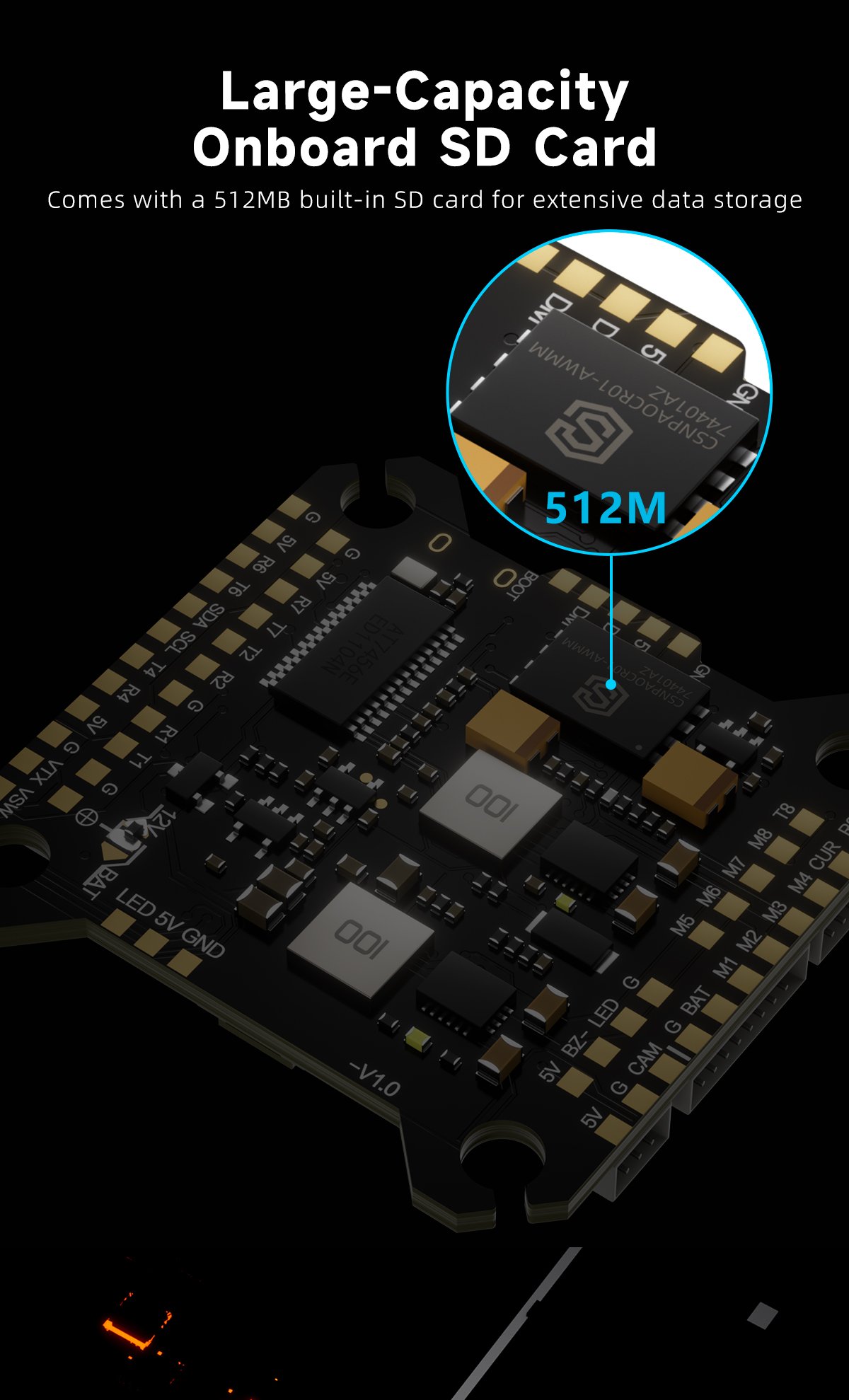

Storage512M blackbox entry; unit unresolvedCurrent manual, device readback and unit confirmation
ESCH80_BLS 80A four-in-one; 3–6SFirmware target, motor/load basis and cooling
Power/bundle5V 3A and 12V 2.5A rails; listed cables and hardwareAccessory budget, packing count and harness continuity

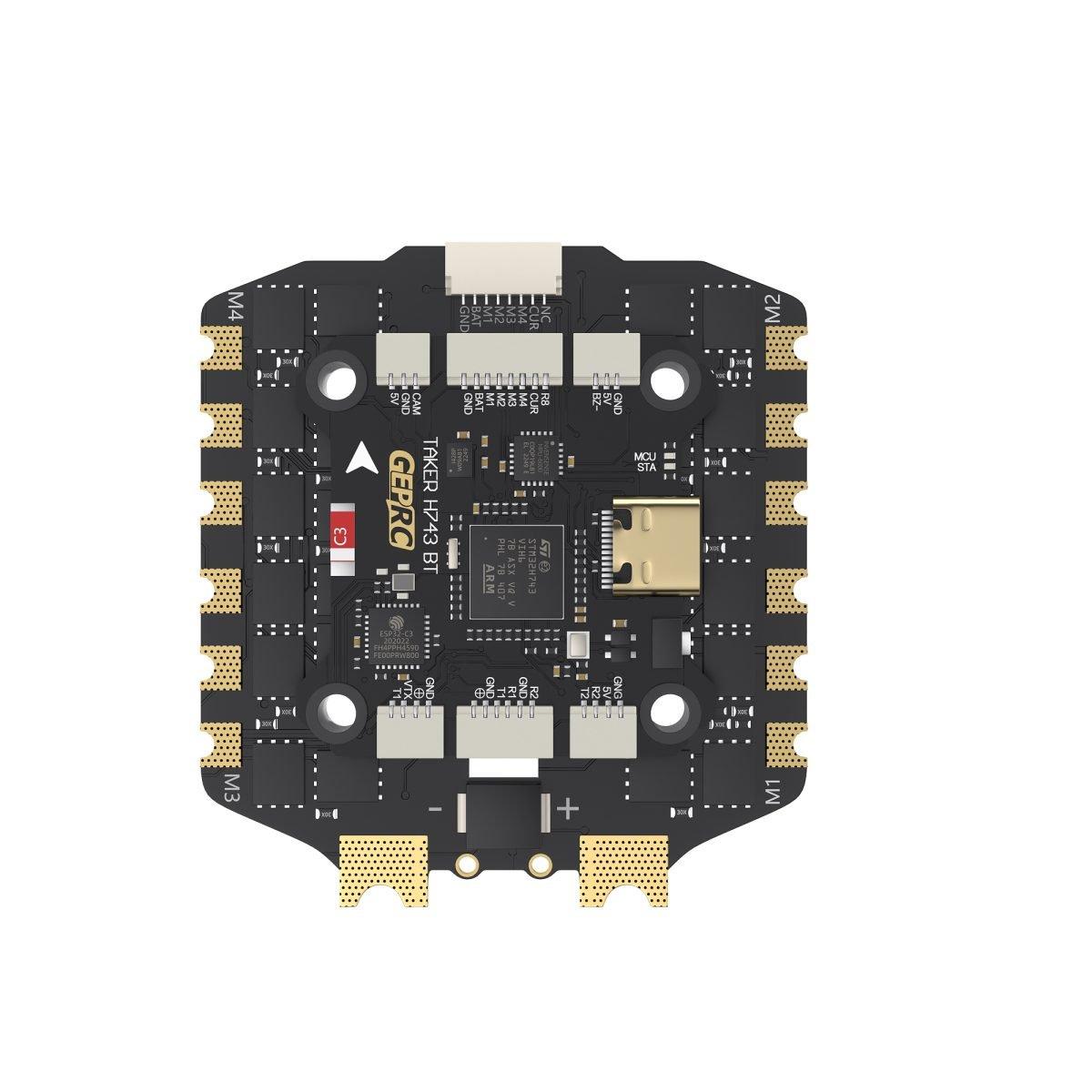

Top view of the GEPRC TAKER H743 BT controller board with USB-C, white peripheral sockets and motor-output pad labels visible.
This controller-only view separates the H743 board from the ESC beneath it; verify the printed revision, connector assignments, Bluetooth status and storage unit from current records.

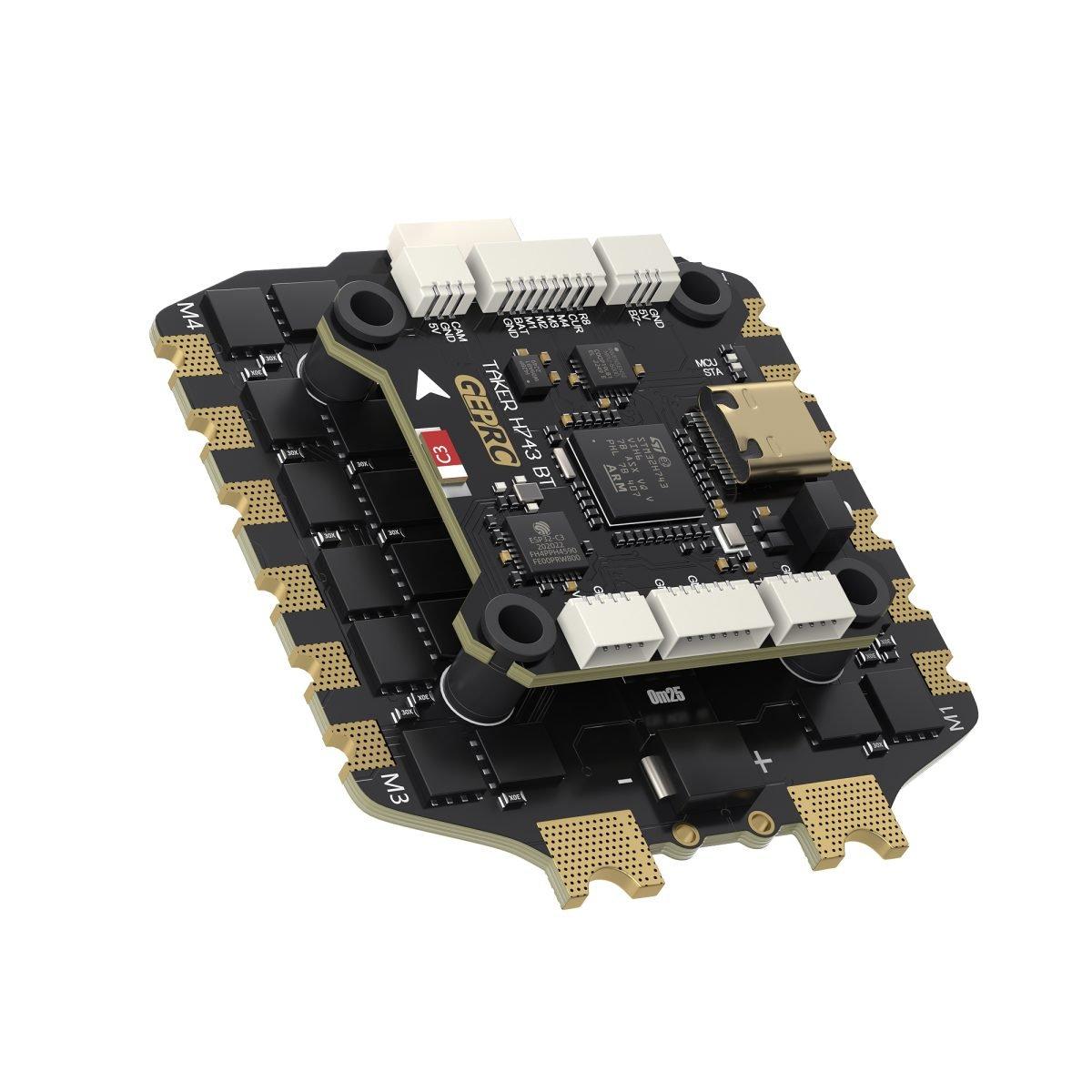

Angled assembled TAKER stack showing the H743 controller mounted above the four-in-one ESC on four spacers.
The paired-board view supports mechanical stack and connector-clearance review; it does not prove harness pinout, rail capacity or delivered firmware.

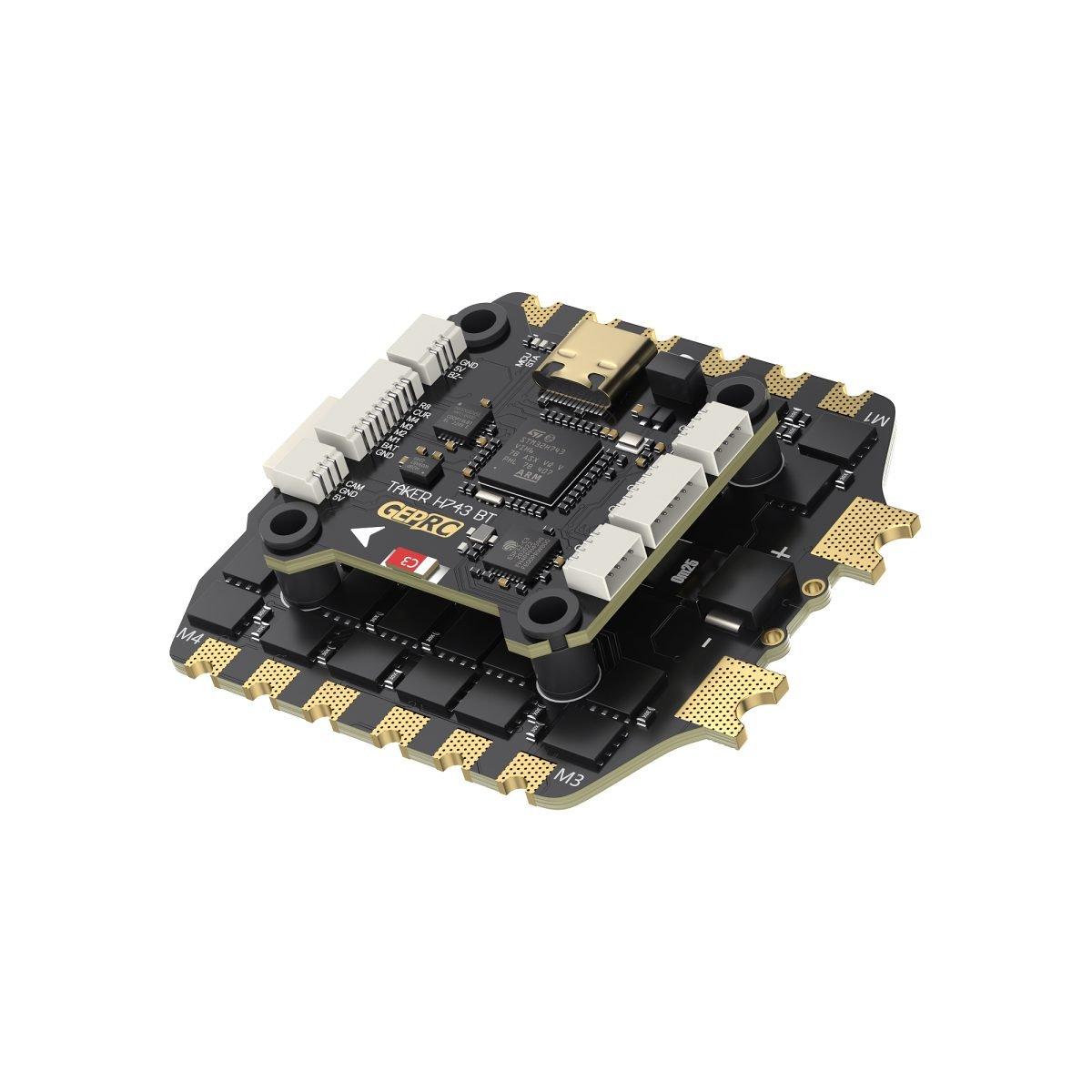

Opposite angled TAKER stack view exposing upper-board sockets and lower ESC power-stage edges.
This angle makes board separation and pad access visible for an installation check; electrical ratings and cable inventory remain document-controlled.

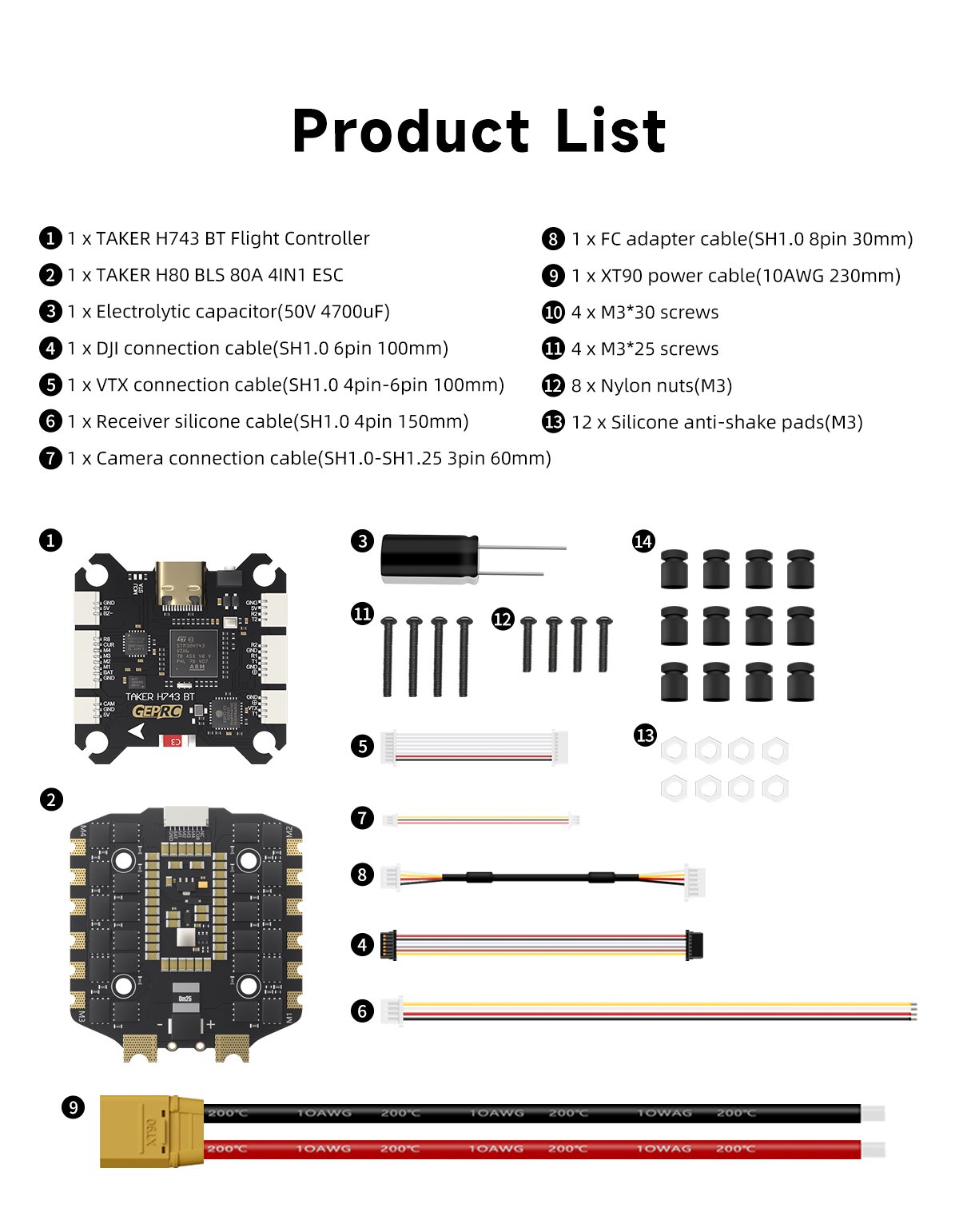

TAKER H743 stack receiving list

  1. Match controller and ESC labels to the quotation.
  2. Continuity-check every supplied interconnect harness.
  3. Confirm capacitor rating, XT90 lead and mounting hardware.
  4. Budget both BEC rails for named accessories.
  5. Save firmware targets and an initial log before installation.

Eight outputs do not remove harness questions

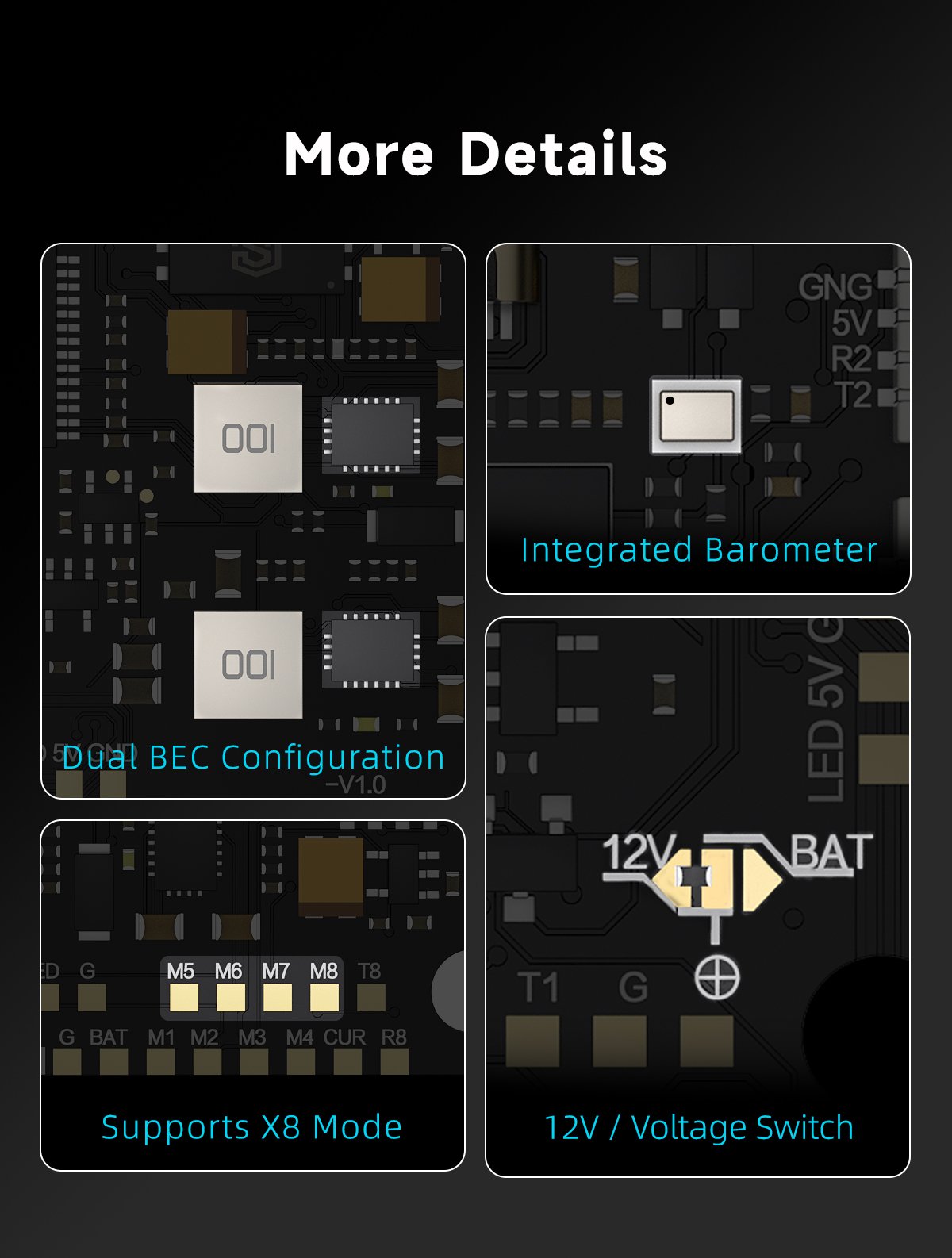

A controller may expose eight motor signals while the bundled ESC serves four channels. Any expanded build needs a documented second power stage, signal allocation, grounds and current measurement plan. Do not infer a complete X8 power system from the controller output count.

Firmware support should be revision specific

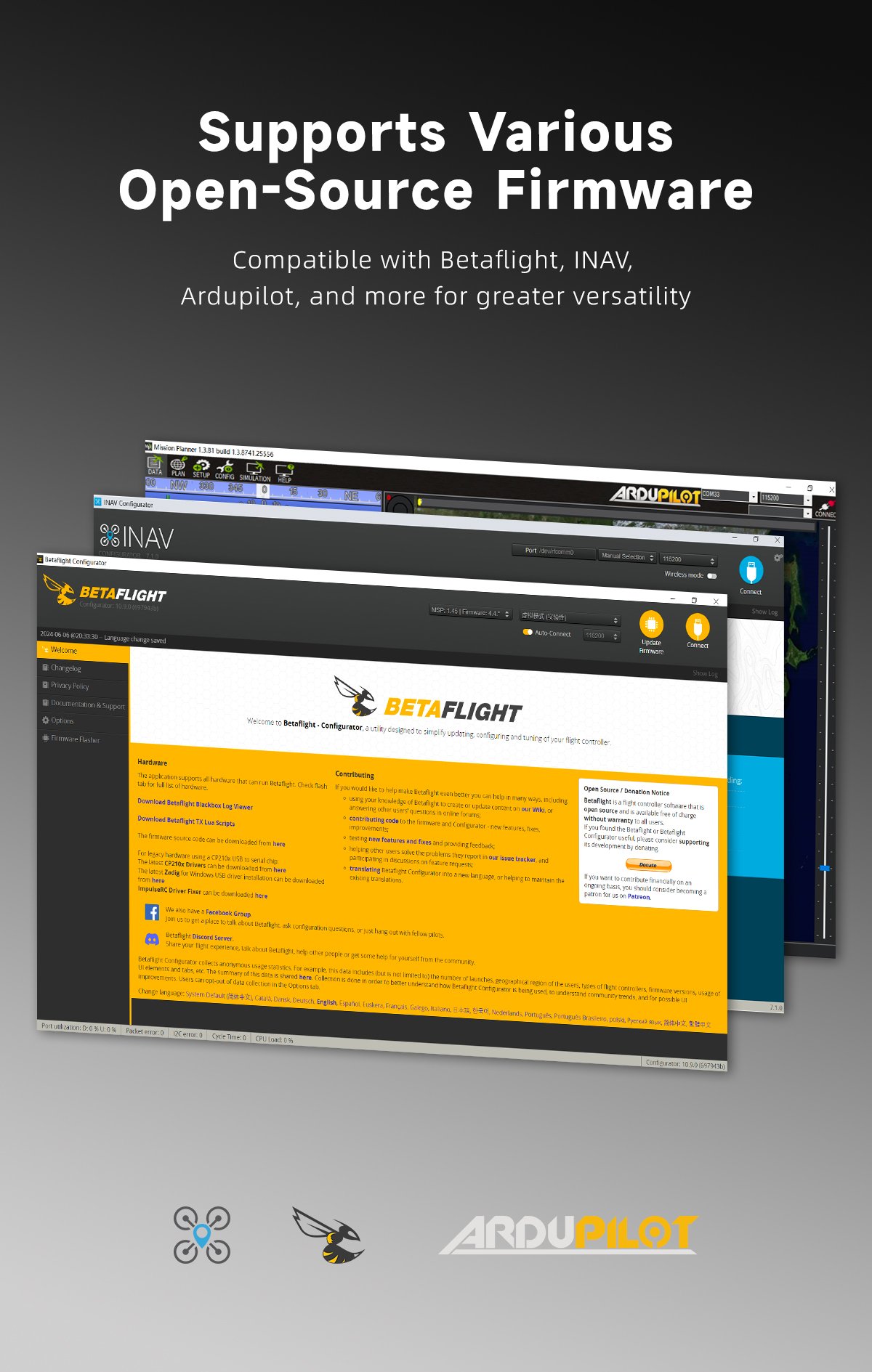

The archive names Betaflight, INAV and Ardupilot, but release support can differ by target and peripheral use. Save the factory target, bootloader, configuration export and rollback method before changing software; treat Bluetooth as unavailable unless the delivered revision and current manufacturer record explicitly support it.

H743 stack integration questions

Does the package power eight motors by itself?
The listed H80_BLS is four-in-one; request the exact power-stage plan for any additional outputs.
Can the 12V rail supply every video accessory?
Only after total demand, startup load, connector and cooling are checked against the board revision.
Which firmware should be installed?
Use the target and release approved for the delivered board, then preserve a restorable baseline.
Review a TAKER stack wiring plan

Provide battery, motors, receiver and video hardware to verify rails, ports and supplied cables.

Review FPV component and kit listings
Identity Hold

TAKER stack pairing card

Controller and ESC evidence must describe the same delivered board pair and cable set.

01
Match controller, ESC, harness, capacitor and power-lead inventory.
02
Read firmware targets, delivered Bluetooth status and storage capacity unit.
03
Budget accessory rails and record continuity before installation.
