DYD05G609 Dual Sensor Gimbal Camera: Two-Axis Imaging for FPV UAV Projects

Price	On request
Model	DYD05G609
Visible camera	1/3-inch 4 MP CMOS; 5× optical; 45× hybrid
Thermal imager	640 × 512; 9.1 mm lens; 12 µm; 8–14 µm
Stabilization	Two-axis pitch/yaw gimbal; no roll axis
Video output	RTSP IP 1080p30; Micro-D HDMI 1080p60 listed
Storage	Local TF dual-channel recording and photography
Power input	12–26.2 V DC; Static 6 W
Dimensions	120 ×113 mm
Weight	260 ±20 g
Thermal lens	9.1 mm
Control interfaces	Network IP / S.Bus / serial port; PWM optional

Get Quote

+86-13959965075

A two-axis payload with optical zoom and 640 thermal imaging

DYD05G609 combines a 5× optical-zoom visible camera and a 640 × 512 thermal imager in a compact two-axis gimbal. For civil FPV UAV projects and multirotor inspection, it provides visible detail and thermal observation through a camera assembly with pitch and yaw movement.

The listed camera weight is 260 ±20 g. This model is a useful candidate when the integration priorities are payload weight, two-direction pointing and a 640-resolution thermal view. Consider it for equipment surveys, roof observation and other site work where the flight plan and camera movement can be matched to the inspection area.

DYD05G609 product image — DYD05G609 camera and gimbal assembly.

Plan around pitch and yaw

Pitch moves the view up or down, while yaw moves it across the scene. The listed travel is −45° to +100° in pitch and −145° to +145° in yaw, giving an installer useful starting angles for checking the camera's clearance.

Match the aircraft's image requirement

This two-axis assembly has no roll motor. For a project that needs independent roll correction, compare a three-axis payload. For a planned area survey, assess how the chosen aircraft attitude and flight path work with the pitch/yaw camera view.

Two visible zoom figures with different meanings

5× optical zoom

The visible lens changes focal length from nominal 5 mm to 25 mm. Use the optical range when deciding how much scene detail the camera should show at the intended working distance.

45× hybrid zoom

The combined zoom figure includes digital enlargement. It is a separate viewing function from the 5× optical lens and does not change the thermal camera's native 640 × 512 array.

Thermal, video and control configuration

The uncooled thermal channel uses a fixed 9.1 mm lens with 12 µm pixels. It can complement the visible image during a review of roofs, equipment and infrastructure. Temperature measurement and full-pixel temperature saving are optional functions to include when selecting the ordered configuration.

Visible sensor	1/3-inch 4 MP CMOS
Thermal imager	640 × 512; 9.1 mm lens; 8–14 µm imaging
Network video	RTSP; 1080p30 mode
HDMI mode listed	Micro-D HDMI; 1080p60
Local storage	TF dual-channel recording and photography
Control	Network IP, S.Bus and serial port; PWM optional

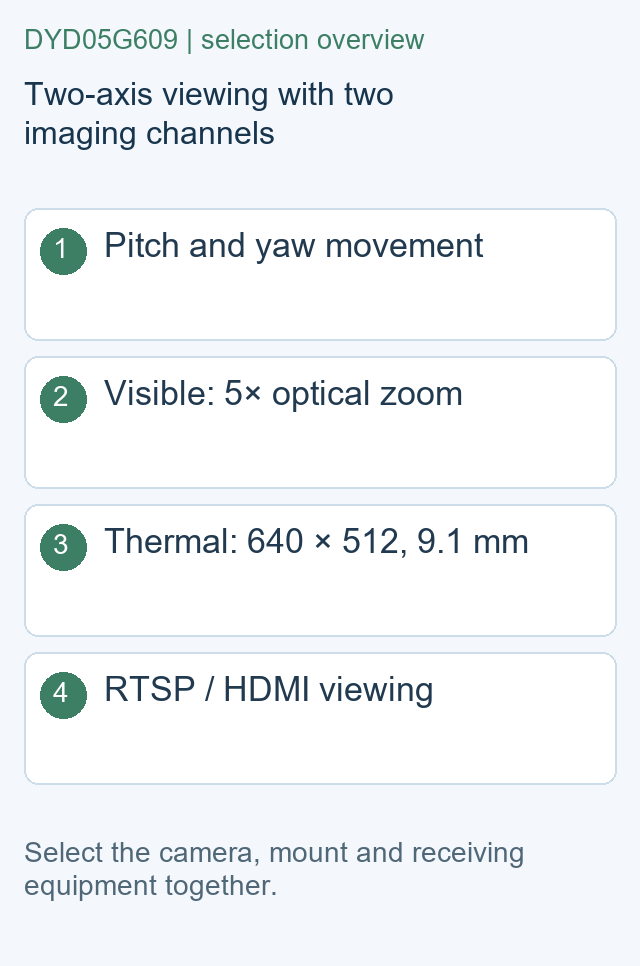

Two-axis viewing with two imaging channels — DYD05G609 — Two-axis viewing with two imaging channels.

Questions for a two-axis camera installation

Where does the 640-resolution thermal channel help?

It gives the thermal view a 640 × 512 native array for reviewing heat patterns across the chosen scene. Define the area and feature size you need to examine, then use a sample from a comparable viewing distance to assess the result.

Can I use HDMI instead of network video?

The specification lists Micro-D HDMI 1080p60 alongside RTSP network 1080p30. Name the receiving equipment and the video connection you want in the enquiry so the cable and output configuration are included.

What belongs in the payload-weight calculation?

Allow for the camera, mounting parts, damping and cable set. Start with the listed 260 ±20 g camera figure, then build the complete installation around your aircraft's payload and balance requirements.

Specify your DYD05G609 camera kit

Send the aircraft type, available mounting space, intended working distance and receiver model. Choose the video/control connection, tell us whether temperature data is required, and describe the inspection detail. This gives the quotation a clear camera configuration and a practical mounting and cable scope.

Specification reference: manufacturer DYD05G609 product data.

DYD05G609 specifications

Visible Camera	1/3-inch 4 MP CMOS; 5× optical; 45× hybrid
Thermal Imager	640 × 512; 9.1 mm lens; 12 µm; 8–14 µm
Stabilization	Two-axis pitch/yaw gimbal; no roll axis
Gimbal Travel	Pitch −45° to +100°; Yaw −145° to +145°
Video Output	RTSP IP 1080p30; Micro-D HDMI 1080p60 listed
Storage	Local TF dual-channel recording and photography
Control	Network IP / S.Bus / serial port; PWM optional
Weight	260 ±20 g
Power	Static 6 W
Voltage	12–26.2 V DC
Dimensions	120 ×113 mm
