VW20 HD Video Transmission System for Long Range Drones FPV Drone Kit

Price: $
Model: VW20 video-link integration

Get Quote


VW20 link integration boundary

Confirm electrical, video and regional interfaces before bench connection

VW20 belongs in an end-to-end video-link chain. Resolve the archived input-voltage conflict, then connect camera, air unit, antennas, ground unit, network output and display under one regional configuration. The VW20 source lists 5.15–5.85GHz operation, dual-channel 30dBm maximum transmission power, -99dBm receiver sensitivity, WPA2, several network topologies, LDPC, up to 100Mbps and 14.5g weight. Its opening says 12V input, while the detailed row says 5V with typical 0.5A and maximum 2.5A. The title uses long-range language, but the detailed condition is greater than 15km ground-to-air line of sight at 2Mbps, not a universal distance. Electrical identity must be settled first.

VW20 interface evidence

  1. 01Power

    12V overview; 5V detailed row

    Module revision, input range, connector and protection
  2. 02RF

    5.15–5.85GHz; dual 30dBm

    Permitted region, antennas, cable loss and approved settings
  3. 03Video/network

    Up to 100Mbps; P2P, multipoint, relay, mesh

    Ports, codec/stream, firmware and topology support
  4. 04Distance

    >15km G2A LOS at 2Mbps; 1.3km urban G2G LOS

    Exact test setup and project-specific link budget

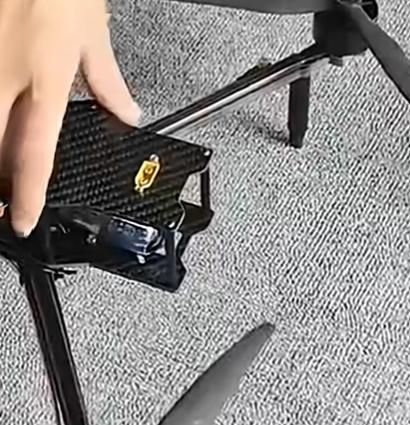

Article 2436 archived source 1: primary view of the VW20 air/ground video-link hardware boundary.
Evidence note 2436-1: this article-owned image supports review of the VW20 air/ground video-link hardware boundary. Visual identity does not resolve the archived input-voltage conflict.

VW20 delivery checklist

  • Module hardware revision and serial identity.
  • Confirmed voltage range, connector and power budget.
  • Air and ground units, antennas, cables and mounts.
  • Firmware, network interface and supported video stream.
  • Regional documentation and controlled bench/link test report.

Keep the module boundary separate from the camera and display

Specify camera output, encoder if separate, Ethernet or other data interface, ground receiver, display or recorder, cables and power converters. The VW20 name alone does not describe the complete video chain.

Regional compliance controls the usable radio setup

Frequency availability and permitted power vary. The supplied document should name hardware region, approved antennas and legal operating settings; avoid treating archived laboratory or line-of-sight conditions as permission for field operation.

VW20 integration questions

Should the installer supply 5V or 12V?

Do not connect power until the module revision and input specification resolve the archive conflict.

Is a distance over 15km guaranteed?

No. The source ties it to a specific line-of-sight and bitrate condition.

What belongs in the complete video kit?

Name air and ground units, antennas, cables, power, camera interface, firmware and display or recorder path.

Define the complete VW20 video chain

Provide camera, ground display, region and power source so interface compatibility can be checked.

Review FPV video-system kits
Media Chain

VW20 chain definition

Resolve electrical identity before assembling the archived long-distance video path.

01
Identify the hardware label, accepted input range and connector polarity.
02
List camera, air and ground units, antennas, cables and output device.
03
Bind every link result to bitrate, topology, region and test conditions.
