Choose the imaging channels

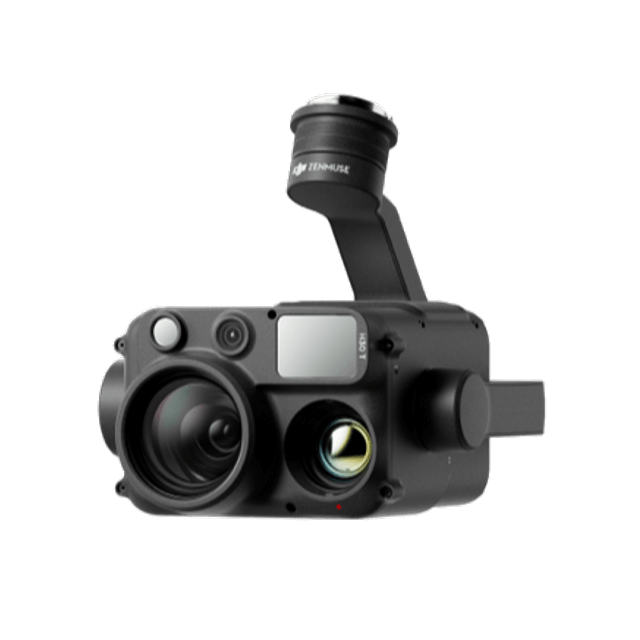

Zenmuse H30T combines visible and thermal imaging for supported DJI enterprise aircraft. Distinguish the thermal-equipped H30T from the H30 when comparing packages.
DJI · UAV IMAGING
Explore DJI Zenmuse drone imaging with visible and thermal channels. Check the supported aircraft, imaging mode and required inspection deliverables.
Zenmuse H30T combines visible and thermal imaging for supported DJI enterprise aircraft. Distinguish the thermal-equipped H30T from the H30 when comparing packages.
Match the payload, aircraft, controller and applicable firmware against current DJI documentation. Plan the image files and inspection workflow before choosing the equipment package.
Specify the aircraft, camera interfaces and required inspection output.
Review the RA7 handheld ground station, battery expansion, control layout and connection requirements for your UAV application....
Review the RE35 radio transmitter and 5G Cloud Box, including control options, streaming interfaces and system compatibility checks....
Review the RQ10 Android ground control station, display specifications, video-link options and configuration records for your UAV project....
Review DF-T836 and DF-T838 wireless and fiber-optic video systems, product roles, connection requirements and compatibility checks....
Another customer from Nigeria reached out for a Long Range FPV drone solution designed for extended-distance missions. The main requirements included long endurance, stable communication links, and clear r...
For a later application, the client requested a customized Long Range FPV drone tailored to their operational needs. System reliability and ease of control were emphasized to support repeated use. Our eng...
Distinguish laptop video input, memory-card playback and USB-C connections before assuming DJI Goggles 3 can act as an external monitor....
For a later application, the Kazakh client requested a customized Long Range FPV drone application in Kazakhstan tailored to their specific operational workflow. Reliability, ease of control, and consisten...
Open a separate catalog recovery copy and reconnect verified photo backups without replacing the original working library....
Another customer from Brazil reached out for a Long Range FPV drone solution designed for extended-distance missions. Long flight endurance, stable long-range communication, and clear real-time video trans...
Later in 2024, a client from Russia contacted us regarding a Long Range FPV drone project for extended-distance missions. The main requirements included long endurance, stable long-range communication, and...
Write useful alt text for a civil FPV still by distinguishing an informative image, a fully redundant illustration and an image-only link....
Keep a civil FPV equipment issue attached to the affected unit, with clear distinctions between a single observation, a repeated concern and an unknown status....
At the beginning of 2025, an Iraqi customer requested a Long Range FPV drone application for long-distance surveillance and monitoring tasks. Ease of operation and system reliability were key priorities. ...
Find evidence-led answers about FPV configuration, compatibility, documentation and acceptance checks for lawful decisions....
Find evidence-led answers about FPV configuration, compatibility, documentation and acceptance checks for lawful decisions....
Find evidence-led answers about FPV configuration, compatibility, documentation and acceptance checks for lawful decisions....
| Price | On request |
|---|---|
| Model | Zenmuse H30T |
| Visible camera | 40MP zoom + 48MP wide-angle |
| Thermal imager | Uncooled VOx; 1280×1024 at 30fps |
| Stabilization | Three-axis; detachable DJI SKYPORT |
| Storage | exFAT microSD; U3/Class10/V30 or above |
| Dimensions | 170×145×165mm |
| Weight | 920±5g |
| Lens configuration | Zoom: 7.1–172mm; thermal: 24mm |
| Control interfaces | DJI Pilot 2 on supported Matrice system |
| Measurement modes | Spot / area / center point |
