ZIO: visible-light inspection
Choose 20x optical zoom for visible detail. Separate 4K local recording from HDMI and RTSP live outputs.
Gremsy · DRONE IMAGING
Compare Gremsy ZIO visible-light and VIO F1 EO/IR drone payloads. Choose optical zoom, thermal imaging, video outputs and the control interface for your UAV.
Choose 20x optical zoom for visible detail. Separate 4K local recording from HDMI and RTSP live outputs.
Add a FLIR Boson thermal channel to visible zoom. Check the required video or temperature-data output and the matching firmware.
FD supplies these Gremsy models. Compare the camera specifications below and send your aircraft, mounting and video requirements with your inquiry.
Review the RA7 handheld ground station, battery expansion, control layout and connection requirements for your UAV application....
Review the RA10 ground control station, Android or Ubuntu options, software compatibility and delivery scope for a selected UAV configuration....
Review DF-T836 and DF-T838 wireless and fiber-optic video systems, product roles, connection requirements and compatibility checks....
Review VS30K and VS50Y UAV video transmission references, interface requirements and the model-specific documents to request before ordering....
Shape music around a venue-tour sentence, inspect automatic ducking keyframes and check entrances, short pauses and endings by listening to the export....
Build a clear J-cut from FPV venue footage into an interview, preserving synchronized speech and checking the meaning of the picture at the reveal....
For a later application, the client requested a customized Long Range FPV drone adapted to their specific operational workflow. Ease of control, system reliability, and consistent image transmission were k...
Identify whether an FPV edit comment uses source or sequence timecode, with a 25 fps example locating one moment in two different placements....
Another customer from Indonesia reached out for a Long Range FPV drone solution designed for extended-distance operations across wide areas. Long endurance, stable long-range communication, and clear real-...
Convert a correctly tagged FPV still to a separate sRGB JPEG, embed its profile and check the saved delivery copy....
Later in 2024, a UAE-based client contacted us regarding a Long Range FPV drone solution designed for extended-distance missions. The main requirements included long endurance, stable long-range communicat...
Use three fictional moments to judge whether a vertical FPV tour preserves the connection between rooms, and when a wider framed view works better....
Another client from Poland reached out regarding a Long Range FPV drone application for extended-distance operations. Long endurance, stable communication links, and clear FPV video were the core requireme...
At the beginning of 2025, an Iraqi customer requested a Long Range FPV drone application for long-distance surveillance and monitoring tasks. Ease of operation and system reliability were key priorities. ...
Find evidence-led answers about FPV configuration, compatibility, documentation and acceptance checks for lawful decisions....
Find evidence-led answers about FPV configuration, compatibility, documentation and acceptance checks for lawful decisions....
Find evidence-led answers about FPV configuration, compatibility, documentation and acceptance checks for lawful decisions....
| Price | On request |
|---|---|

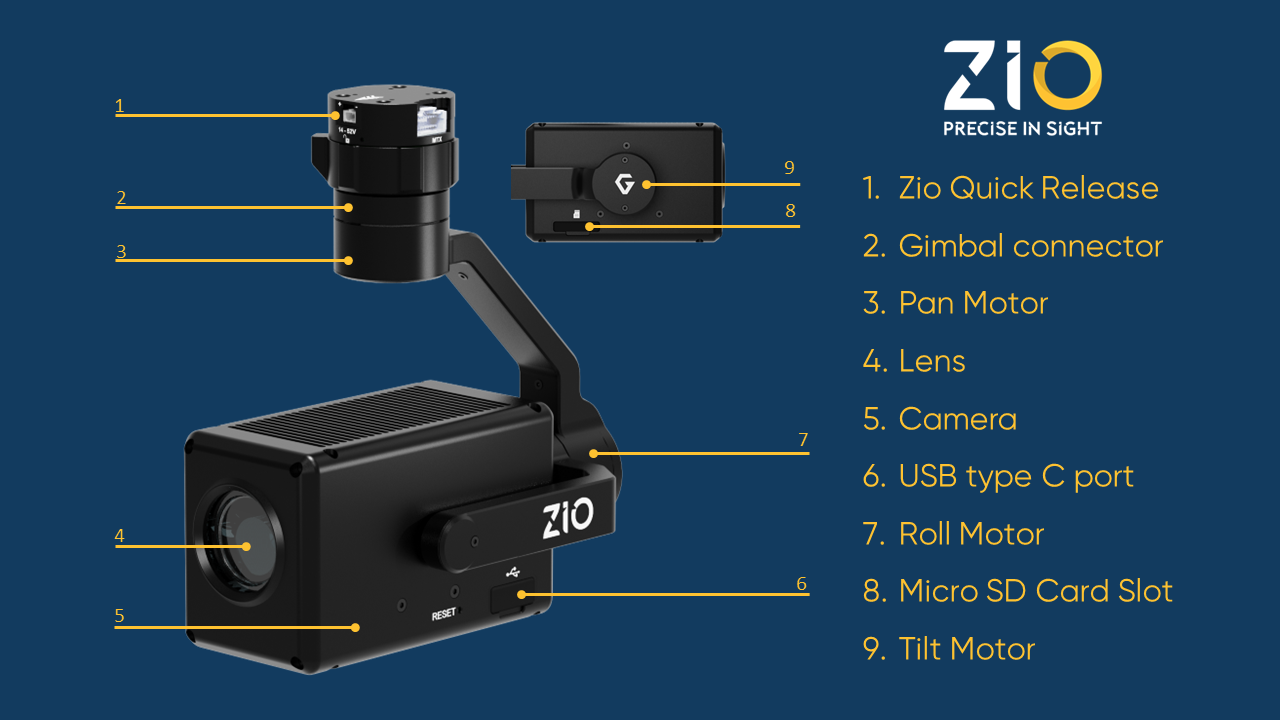

| Model | ZIO |
| Visible camera | Sony 1/2.5-inch Exmor R CMOS; 8.51 MP |
| Stabilization | Three-axis gimbal |
| Video output | HDMI 1080p60; Ethernet RTSP 720p30 |
| Storage | 4K 3840 x 2160 at 30 fps; JPEG photographs and MP4 video on microSD |
| Power input | 14.5-52 V |
| Dimensions | 145 x 90 x 148 mm (D x W x H) |
| Weight | 480 g, manufacturer-listed |
| Lens configuration | 20x optical zoom; 4.4-88.4 mm |
| Control interfaces | MAVLink; UART/Ethernet; documented PX4 and ArduPilot integration |
MORE
| Price | On request |
|---|---|
| Model | VIO F1 |
| Visible camera | Sony 1/2.5-inch CMOS; 20x optical zoom |
| Thermal imager | F1: FLIR Boson 640 Radiometric; native 640 x 512; 60 Hz imaging |
| Stabilization | Three-axis mechanical gimbal |
| Video output | HDMI / RTSP |
| Storage | 3840 x 2160 at 30 fps; MP4 video and JPEG photographs |
| Power input | 14.5-52 V |
| Dimensions | 173 x 148 x 159 mm (D x W x H) |
| Weight | 854 g, manufacturer-listed |
| Lens configuration | F1 thermal lens: 14 mm fixed-focus |
| Control interfaces | UART and Ethernet; documented ArduPilot/PX4 environment |
MORE
